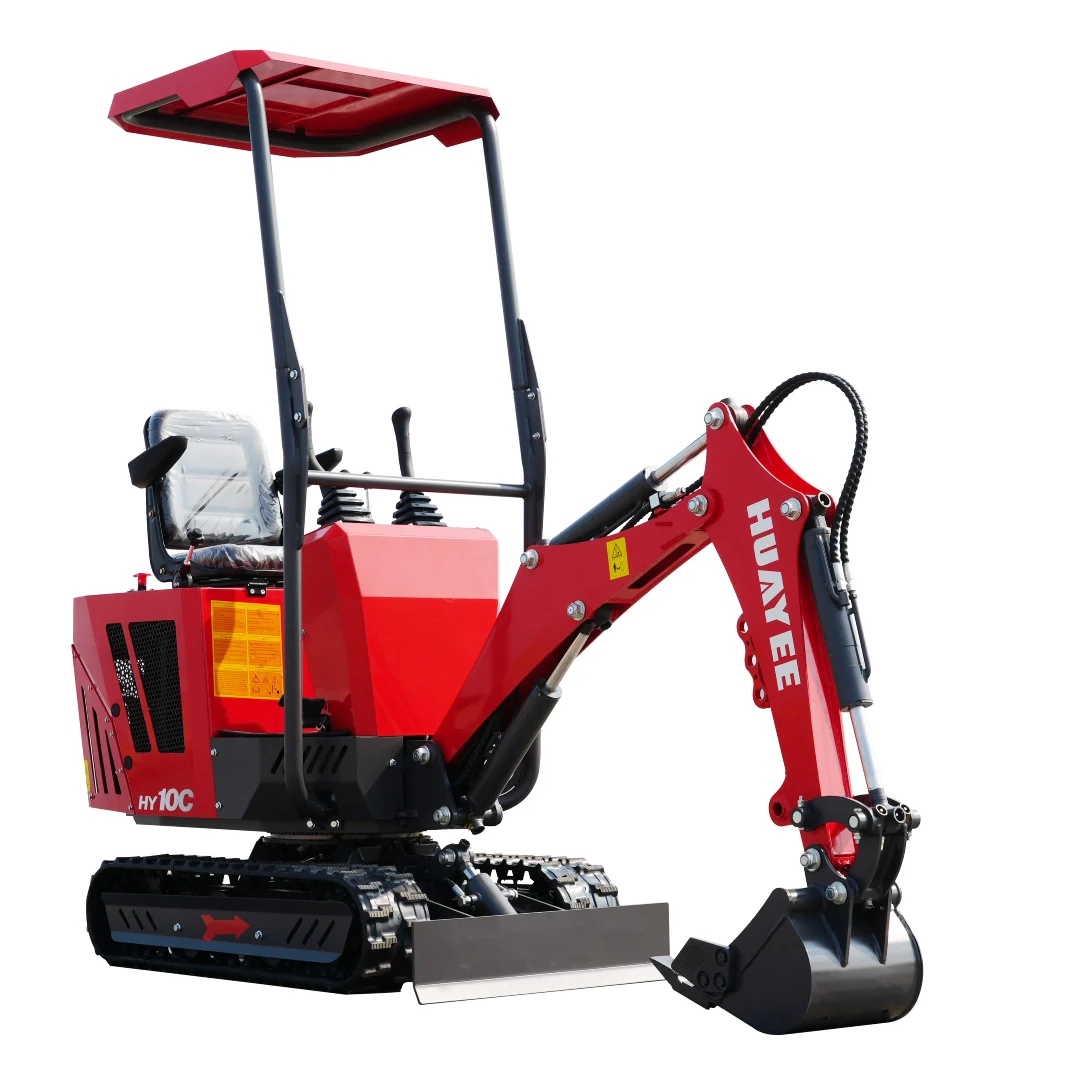

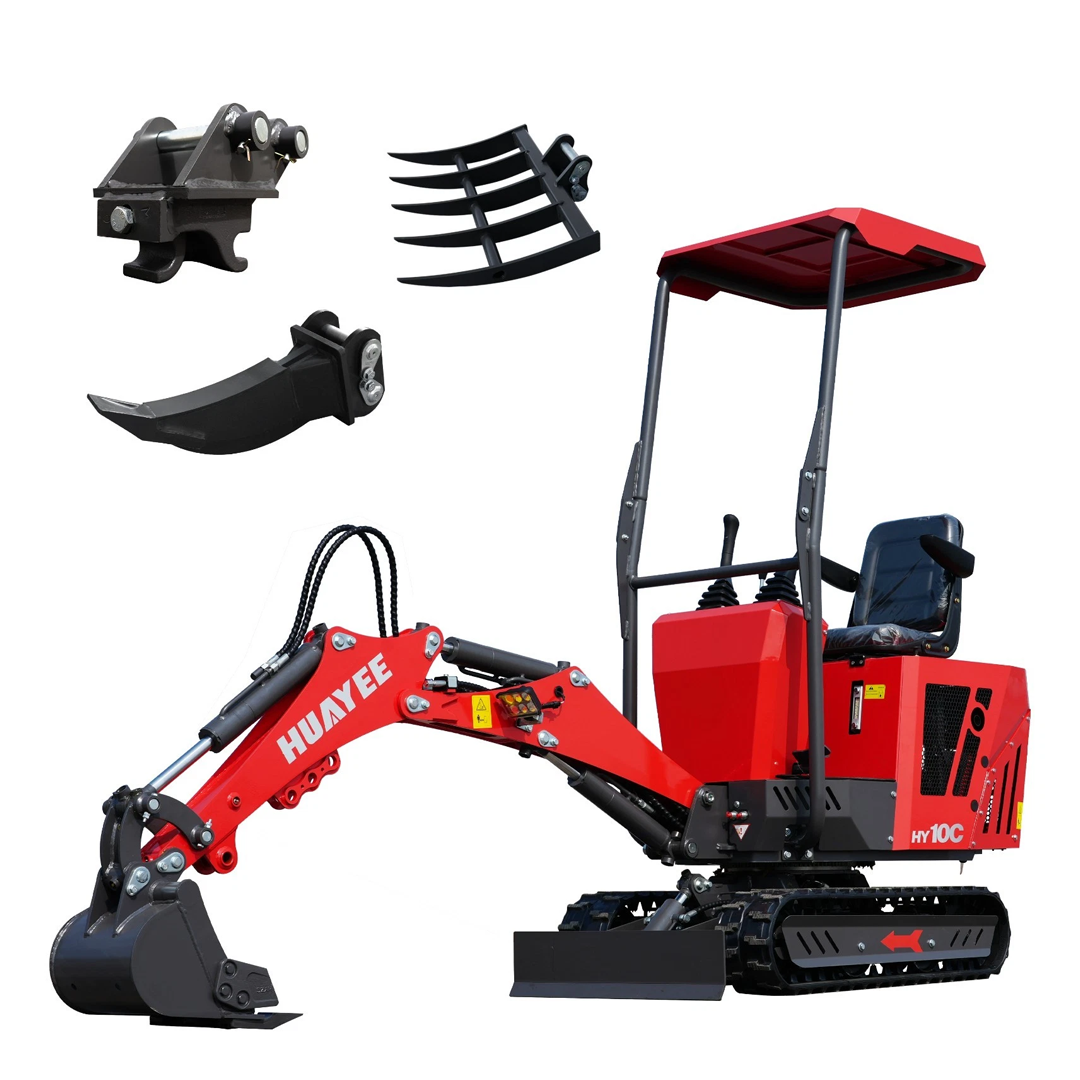

HY10C 1 Ton Mini Excavator — 13.5HP EPA RATO R420V, Ultra‑Compact 29 in Width

Overview

The HY10C mini excavator is a compact crawler machine designed for tight spaces where bigger equipment can’t fit, making it a practical choice for trenching, landscaping, and small property projects.​
This configuration is listed with a 13.5HP EPA gas engine (RATO R420V) and compact chassis dimensions (29 in width), aiming for maneuverability on small jobs.​
Hydraulic flow is listed at 18 L/min with a 3.5 gal hydraulic oil tank capacity, supporting steady operation for common digging and material handling tasks.​

Best for

• Trenching and small excavations on tight-access sites.​

• Landscaping and property maintenance work where compact width helps.​

• Light digging, cleanup, and material moving with a small bucket.​

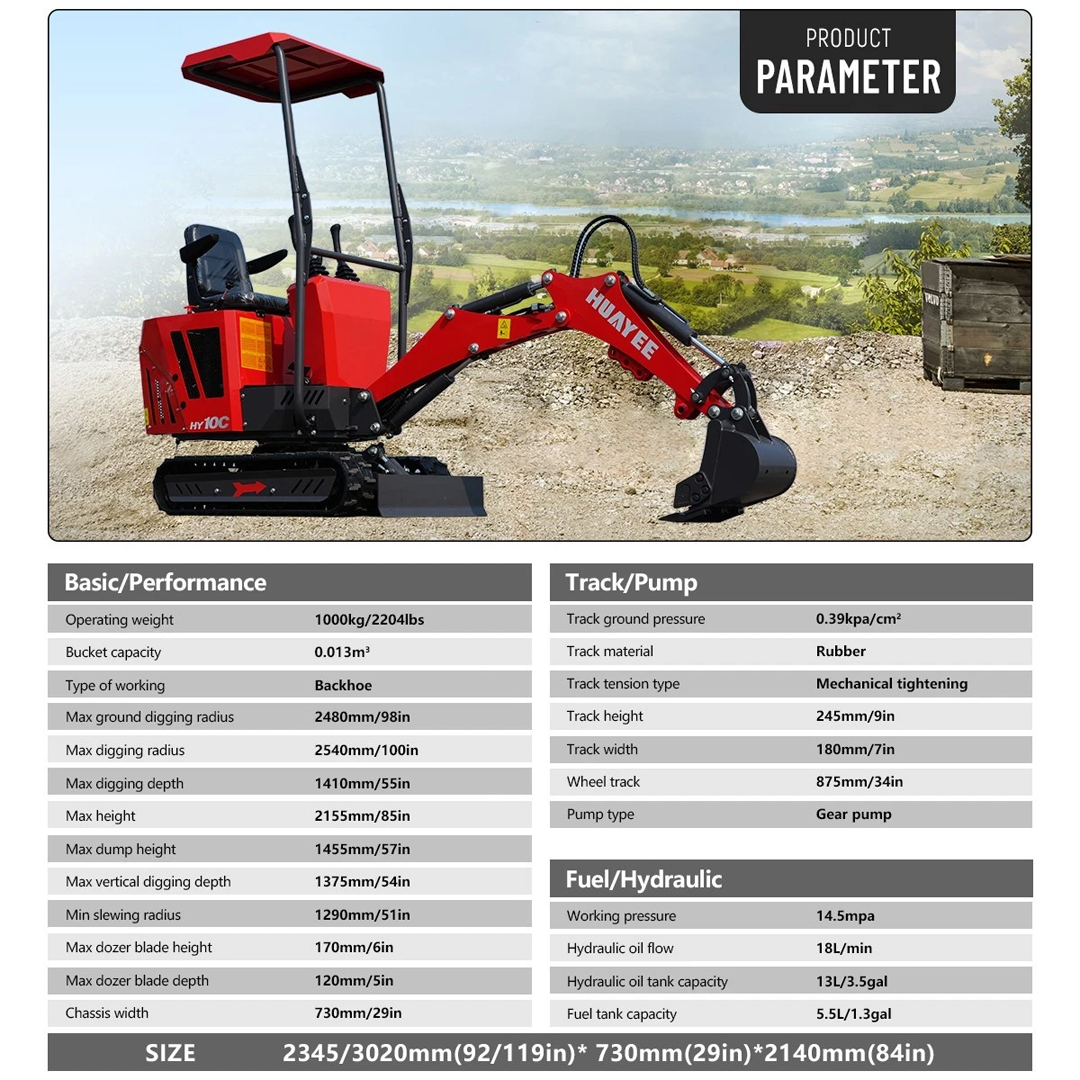

Key specs (high intent)

• Model: HY10C (model year 2025).​

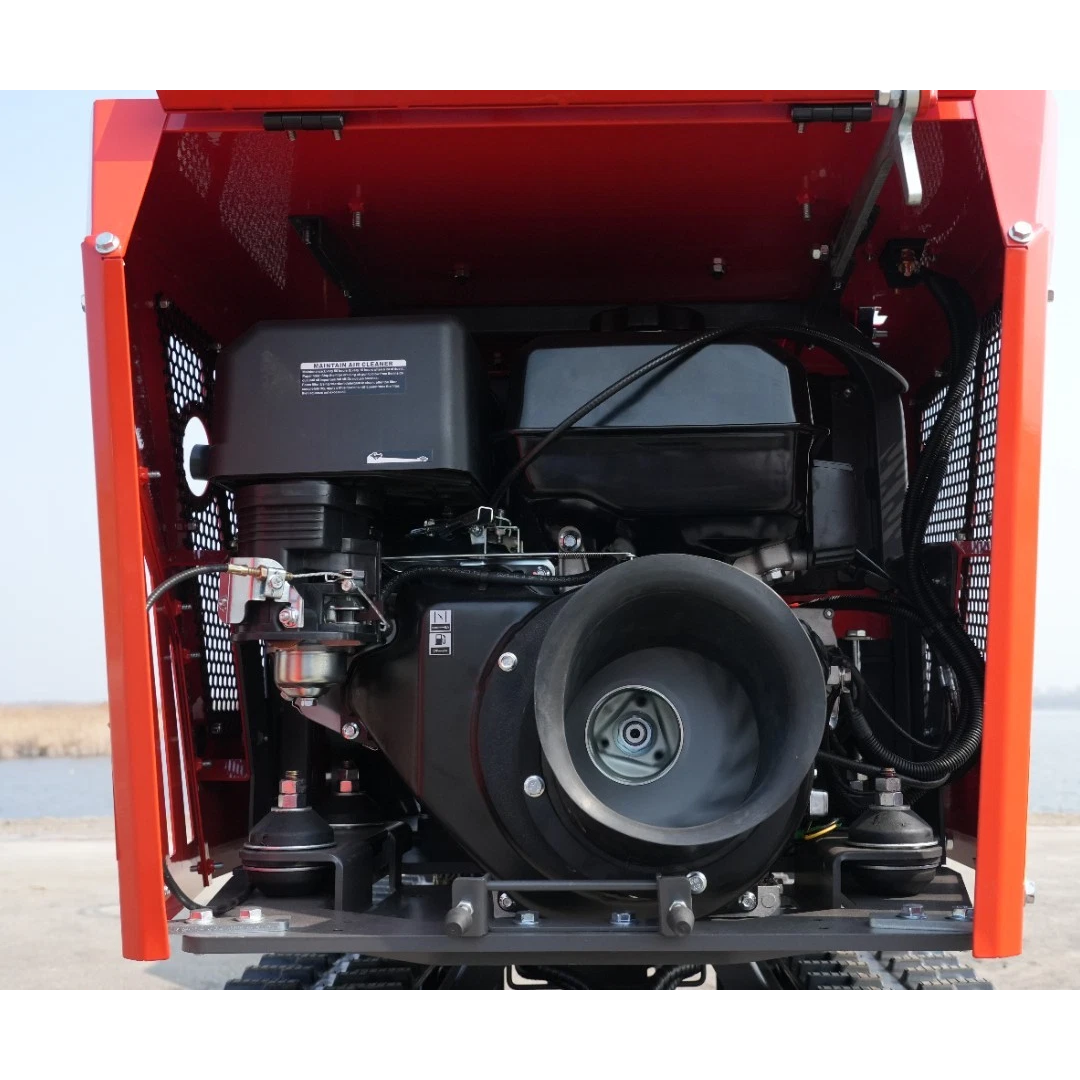

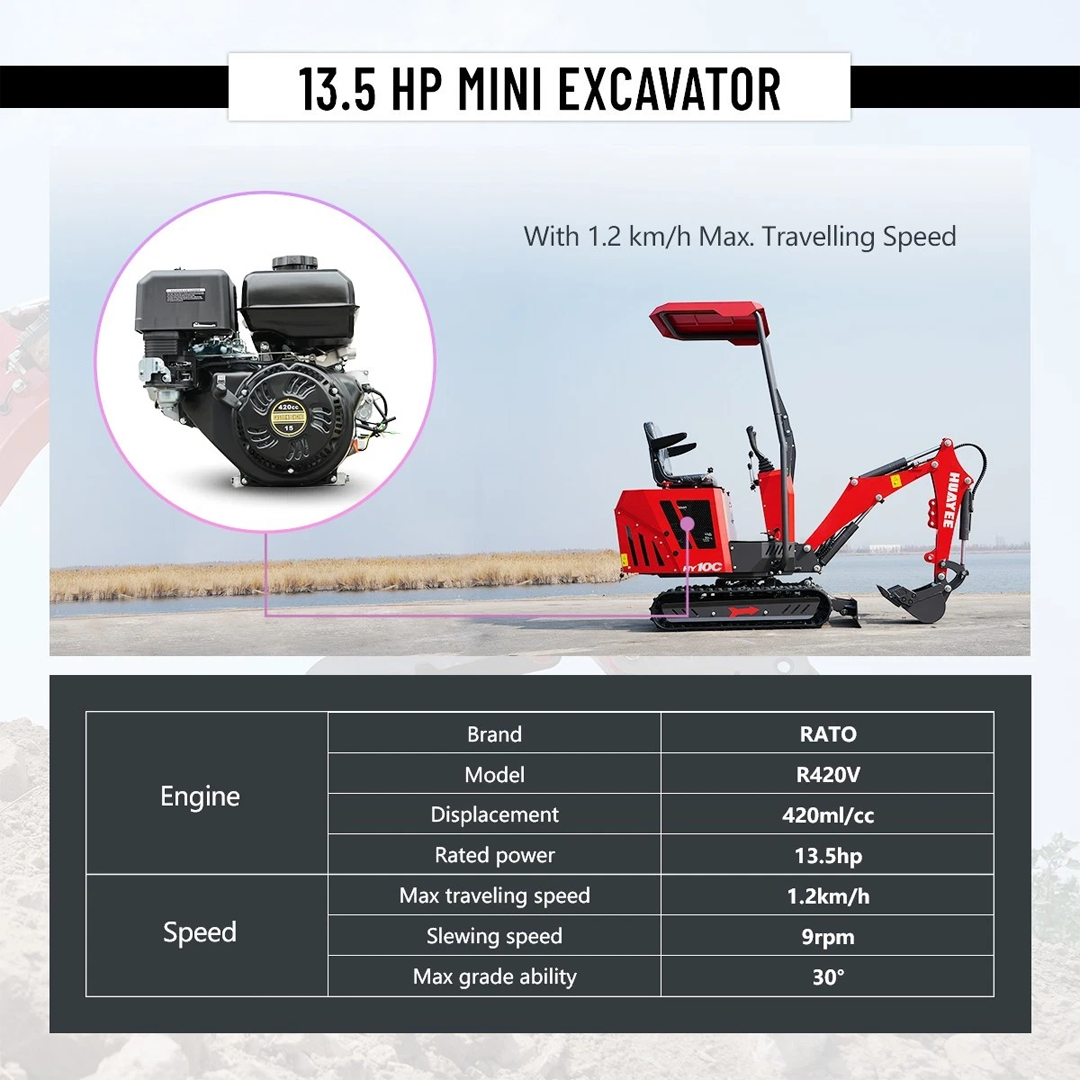

• Engine: RATO R420V; rated power 13.5hp; displacement 420cc; fuel tank 1.3 gal.​

• Operating weight: Under 3,000 lbs (listing category); hours 0 (new).​

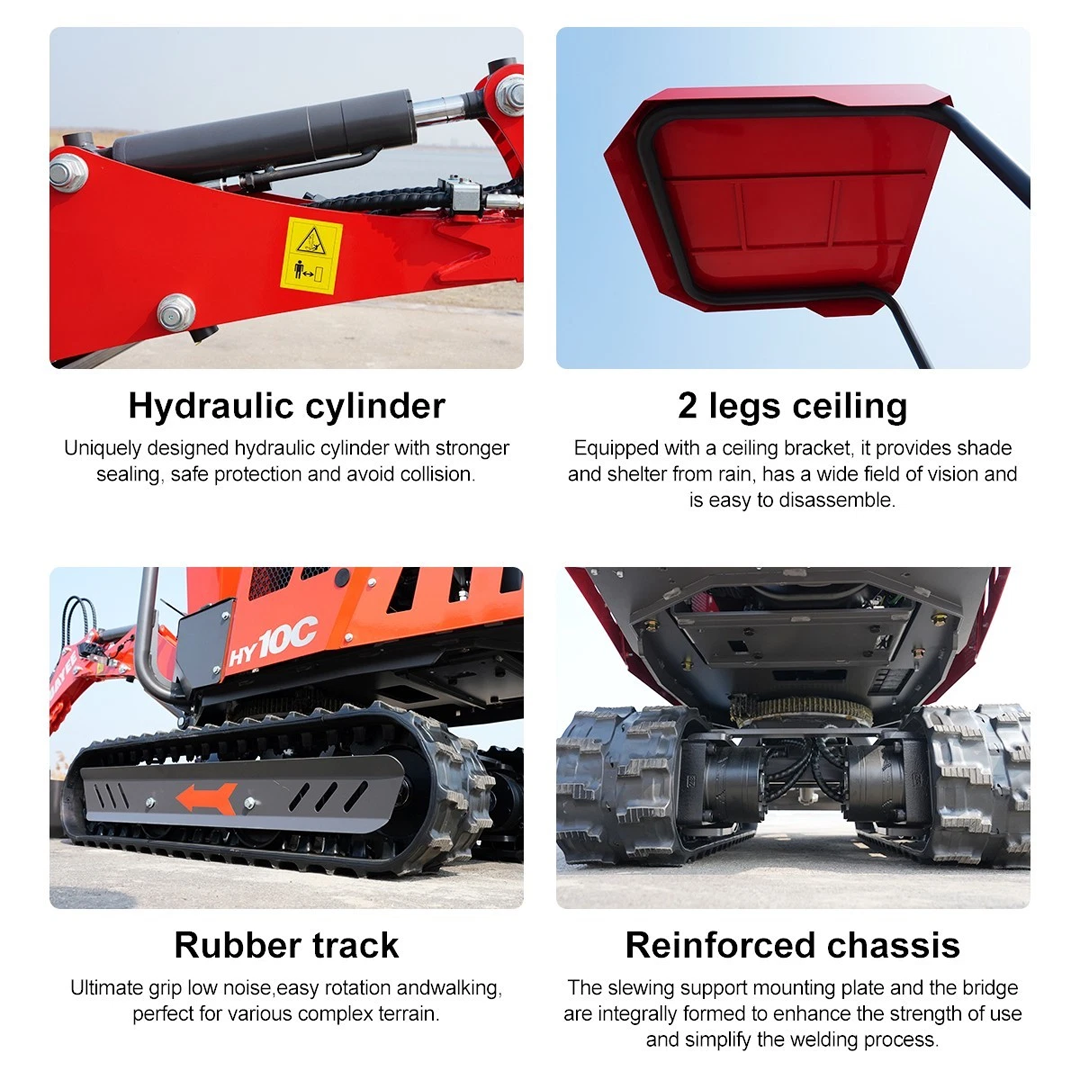

• Hydraulics: Hydraulic oil flow 18 L/min; hydraulic oil tank capacity 13 L / 3.5 gal; working pressure 14.5 mpa; pump type gear pump.​

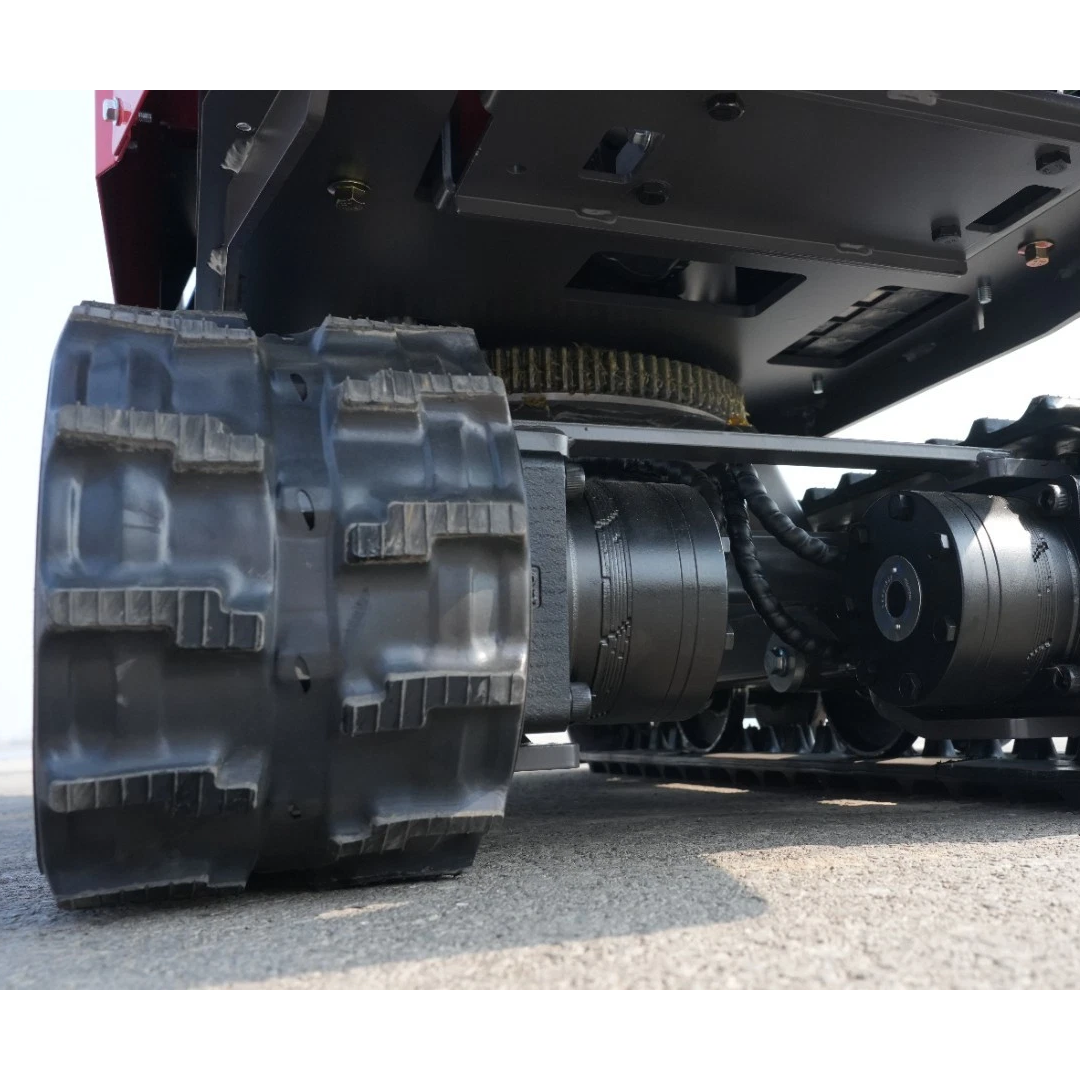

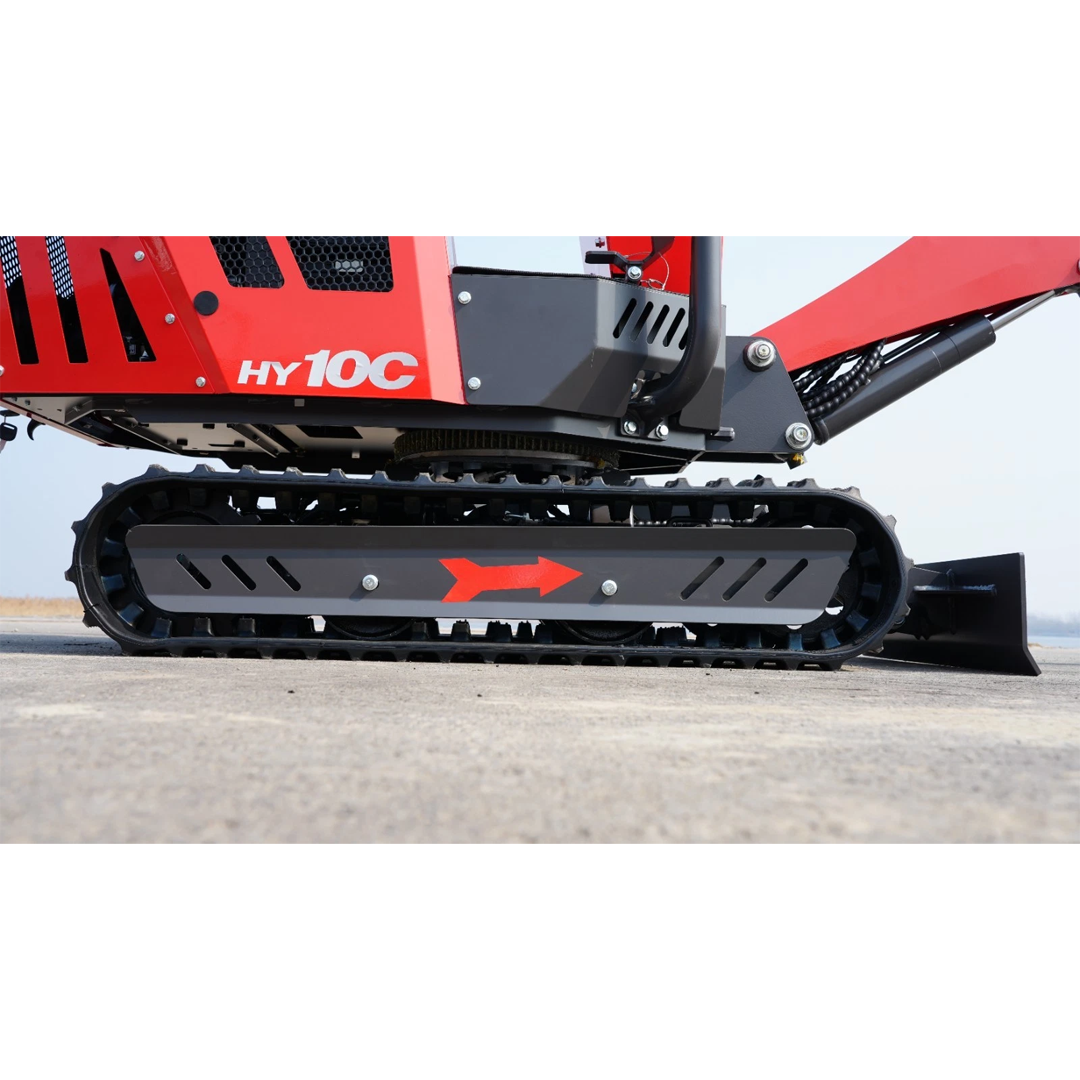

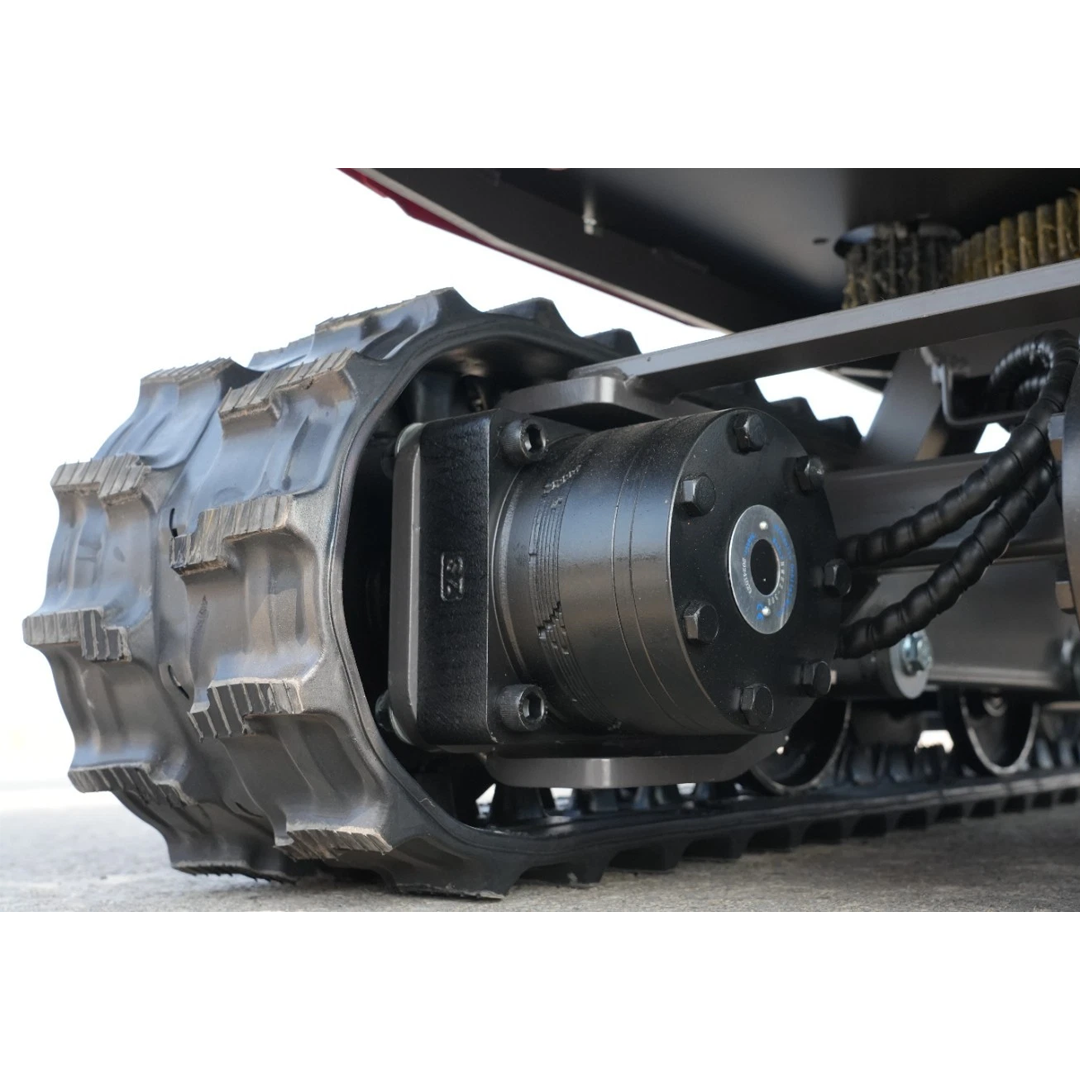

• Travel: Max traveling speed 1.2 km/h; max grade ability 30°; track ground pressure 0.39 kpa/cm²; track tension type mechanical tightening; rubber tracks; track width 7 in.​

• Swing: Slewing speed 9 rpm; min slewing radius 51 in.​

• Bucket: Bucket capacity 0.013 m3.​

Operating range (scope of work)

• Max digging depth: 1410 mm / 55 in (also shown as “5'–6'” on the listing).​

• Max vertical digging depth: 1375 mm / 54 in.​

• Max digging radius: 2540 mm / 100 in; max ground digging radius 2480 mm / 98 in.​

• Max dump height: 1455 mm / 57 in.​

• Max dozer blade height: 170 mm / 6 in; max dozer blade depth: 120 mm / 5 in.​

• Max height: 2155 mm / 85 in.​

Dimensions (selected)

• Chassis width: 730 mm / 29 in.​

• Wheel track: 875 mm / 34 in.​

• Track height: 245 mm / 9 in.​​
