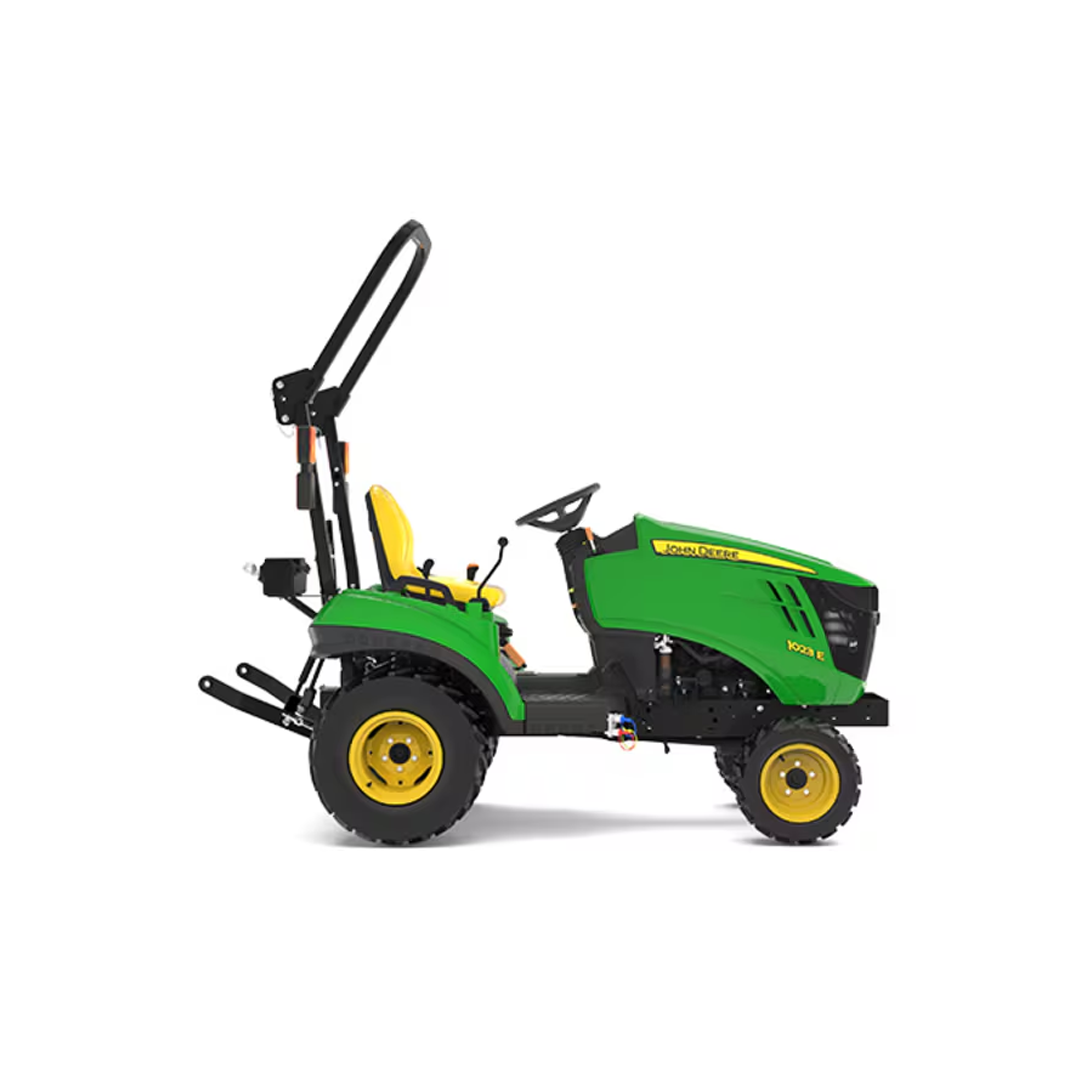

          John Deere 1023E Sub‑Compact Utility Tractor (1 Series) — 21.5 HP Yanmar Diesel, 4WD Hydrostatic 2‑Range, Limited Cat 1 Hitch (758 lb Lift)

          $6,879.50 USD
          $13,999.00 USD
          Shipping fees will be calculated at checkout.
          In stock

          • Full Manufacturer Warranty

          • Free Nationwide Shipping

          • Factory-Certified Quality

          The John Deere 1023E is a sub‑compact utility tractor designed for property maintenance where mowing, material handling, grading, and seasonal cleanup need to be done with one versatile machine.
          Its Yanmar 3‑cylinder diesel engine delivers 21.5 hp and Final Tier 4 emissions compliance, paired with a smooth two‑range hydrostatic transmission for precise low‑speed work and easy direction changes.

          Standard 4WD and power steering provide confident traction and tight maneuverability on lawns, gravel, and uneven ground, while a wet‑disc brake system supports controlled stopping during loader and slope work.
          A Limited Category 1 three‑point hitch and independent PTO system make the 1023E compatible with a wide range of rear implements and mid‑mount mower solutions, helping you move from mowing to ground work without switching machines.

          The open operator platform focuses on comfort and simplicity, featuring a foldable ROPS, tilt steering wheel, toolbox storage, and a 12‑V outlet—practical details that matter when the tractor is used regularly for chores and weekend projects.

          Key specs block

          • Engine (gross): 16 kW (21.5 hp) SAE J1995 @ 3200 rpm

          • Engine model: Yanmar 3TNM74F‑NCJT; diesel; indirect injection; natural aspiration; Final Tier 4

          • Displacement: 0.993 L (60.6 cu in); 3 cylinders

          • Torque @ rated speed: 47.7 Nm (35.2 lb‑ft)

          • PTO power: 12.1 kW (16.2 hp)

          • Transmission: Hydrostatic (two range)

          • Cruise control: No

          • Hydraulics type: Open center; single gear pump

          • Hydraulic flow: Steering 13.2 L/min (3.5 gpm) + implement 13.2 L/min (3.5 gpm) = 24 L/min (6.3 gpm total)

          • Max hydraulic pressure: 138 bar (2000 psi)

          • Remote valves: Up to three available

          • 3‑point hitch: Limited Category 1

          • 3‑pt lift capacity: 344 kg (758 lb) @ 24 in behind link arms

          • PTO speeds: Rear 540 rpm; mid 2100 rpm; independent; wet disk clutch & brake

          • Differential lock: Yes

          • Fuel tank: 24 L (6.3 US gal)

          • Approx. shipping weight (open station): 656 kg (1446 lb)

          • Wheelbase: 1450 mm (57.1 in)

          • Front axle clearance: 195 mm (7.7 in)

          • Turning radius (outside front tire): 2.51 m (8.2 ft)

          • Tires (common options): Front R3 18x8.50‑10 or R4 18x8.5‑10; Rear R3 26x12‑12 or R4 26x12‑12

          • Convenience: Toolbox, tilt steering wheel, 12‑V outlet
