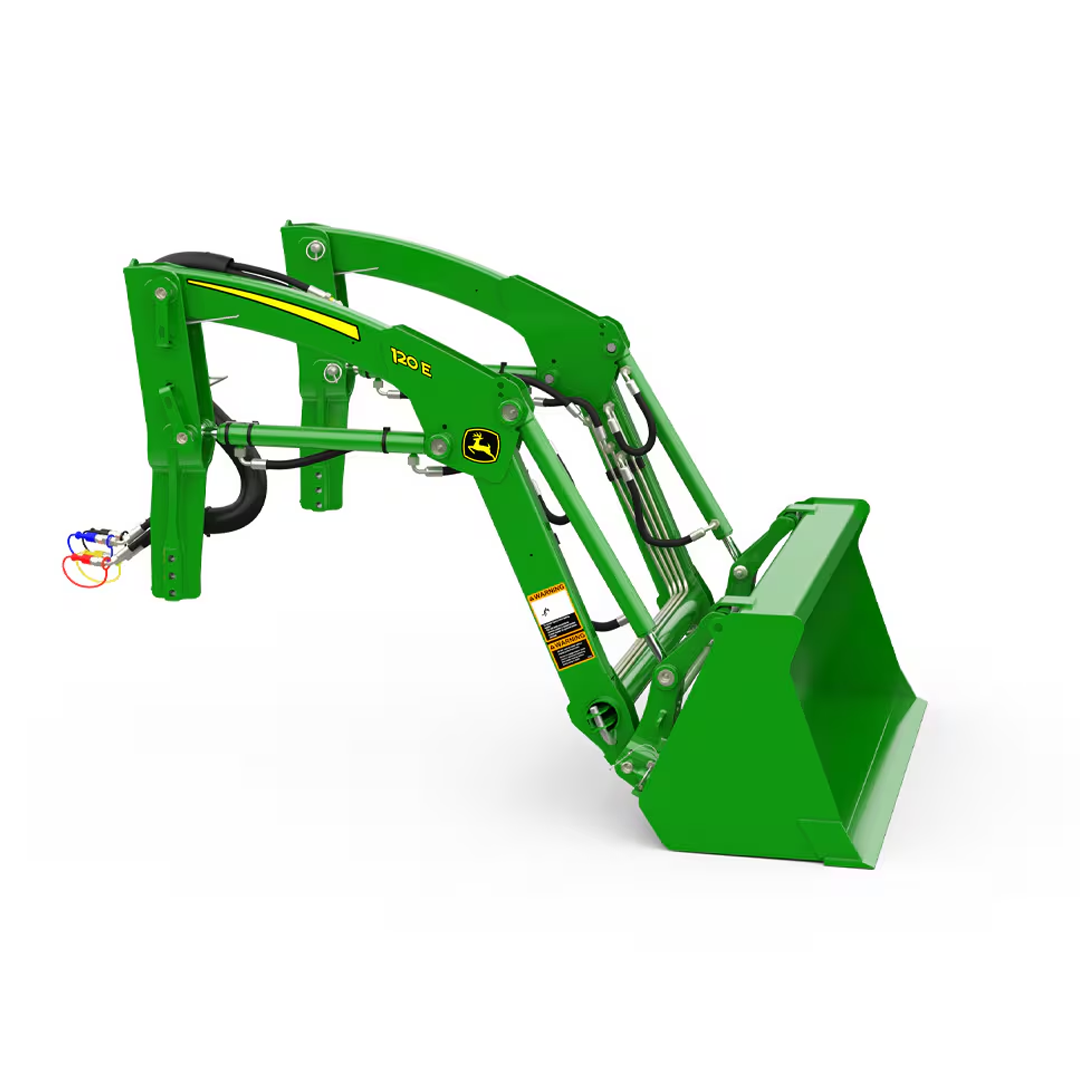

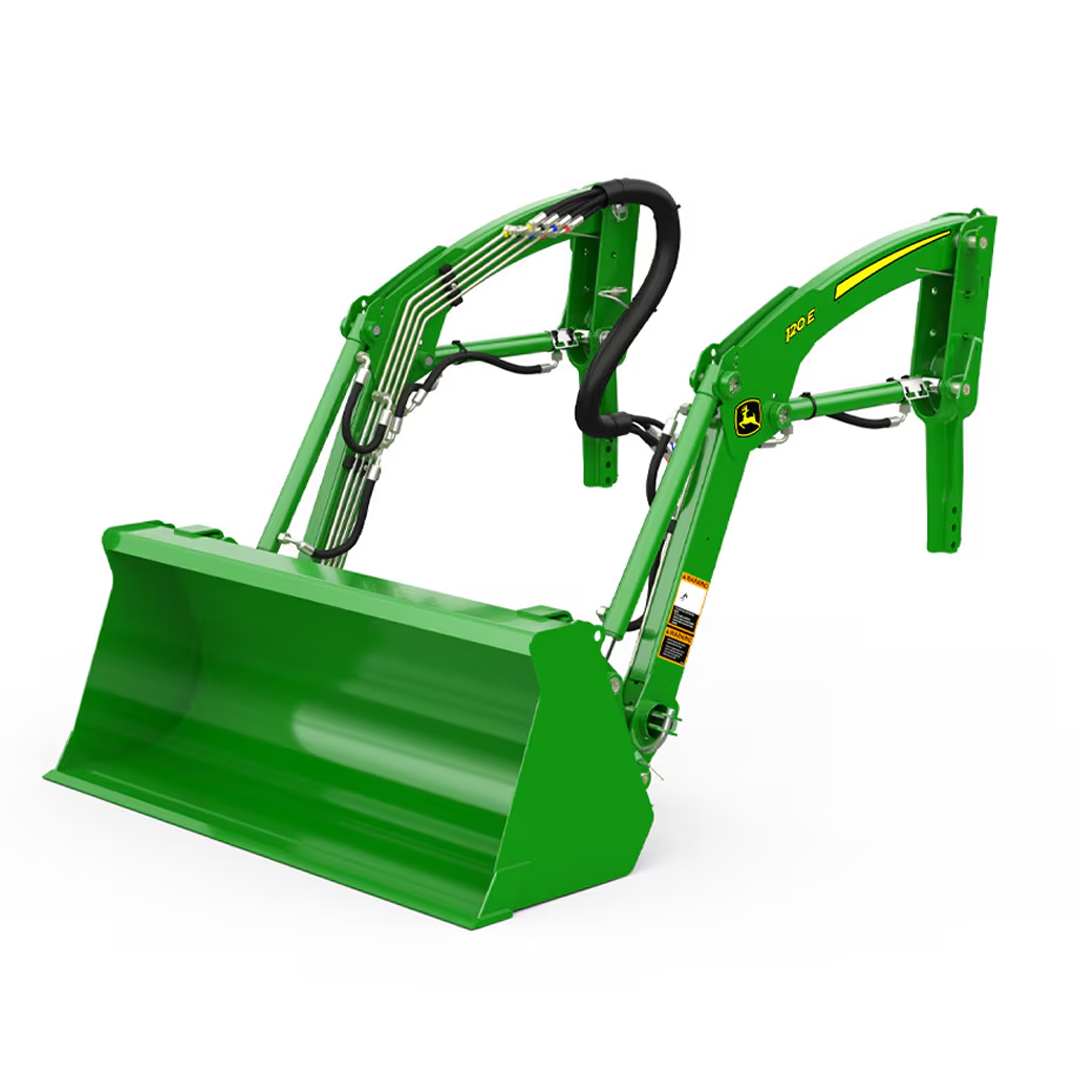

John Deere 120E Front End Loader for 1 Series Tractors – Quik-Change Ready

Elevate your John Deere 1 Series compact tractor's capabilities with the 120E Front End Loader. Engineered for superior reach, fast attachment swaps, and heavy-duty performance on small farms and properties. Perfect match for everyday loading, grading, and material handling tasks.

Key Features

• Curved Boom Design: Maximizes forward reach and dump clearance while keeping loads fully visible from the operator seat.

• Quik-Change™ Mechanical Detached: Tool-free attachment carrier lets you switch buckets, forks, or blades in under 60 seconds.

• Parking Stand System: Unique torque tube storage eliminates loose parts – simply back off the tractor to detach completely.

• Mechanical Self-Leveling: Maintains bucket position throughout lift for safer, more precise operation.

• Lubrication Access: Offset head design with end-of-pin grease points for easy maintenance.

Top Applications

• Loading trailers with gravel, dirt, mulch, or manure for homestead projects.

• Clearing snow from driveways and paths with optional snow blades or buckets.

• Backfilling trenches, grading sites, or spreading base material evenly.

• Handling pallets, bales, or feed bags with quick-swap pallet forks.

• Property maintenance like stockpiling materials or cleanup after storms.

Perfect Compatibility

• Tractor Models: John Deere 1023E and 1025R (1 Series only) – factory-engineered mount.

• Recommended Tires: Front 18x8.5-10, Rear 26x12-12 for optimal balance and performance.

• Hydraulics Required: Tractor's 3.5 gpm @ 1987 psi – no additional pump needed.

• Standard Bucket: Pairs with 49-inch (1250 mm) pin-on materials bucket (53 kg).

• Weight & Dimensions: Base unit 220.5 kg (486 lb); max lift height 71.2 inches (1809 mm).

Performance Specifications

• Lift Capacity: 825 lb (375 kg) at pivot / 570 lb (259 kg) at 500 mm forward.

• Boom Breakout Force: 1808 lb (806 kg) for digging tough material.

• Cycle Times: Raise 4.0 sec, Lower 2.5 sec, Dump 2.2 sec (regen system).

• Bucket Rollback: 1559 lb (707 kg) at ground level – secure transport angle.
