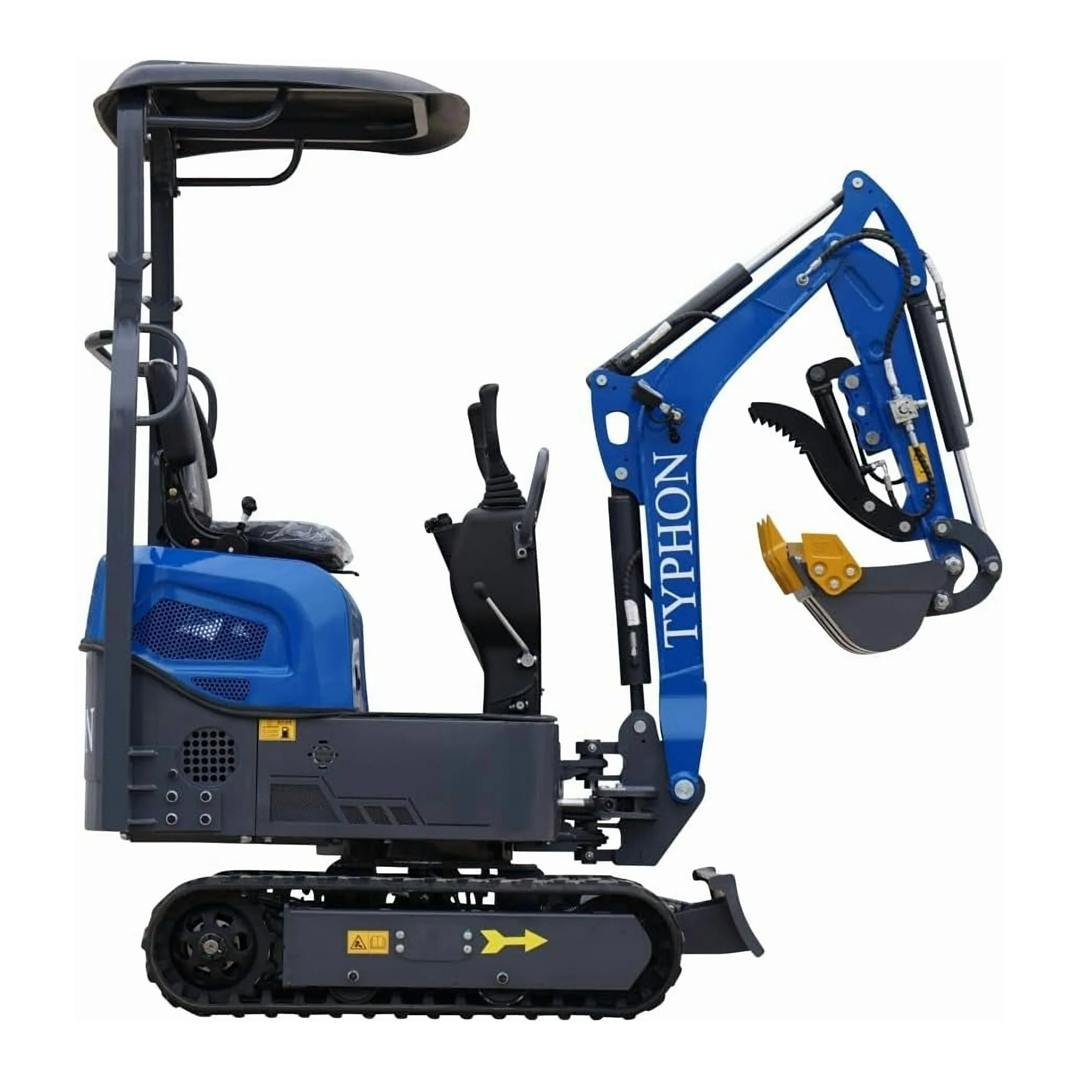

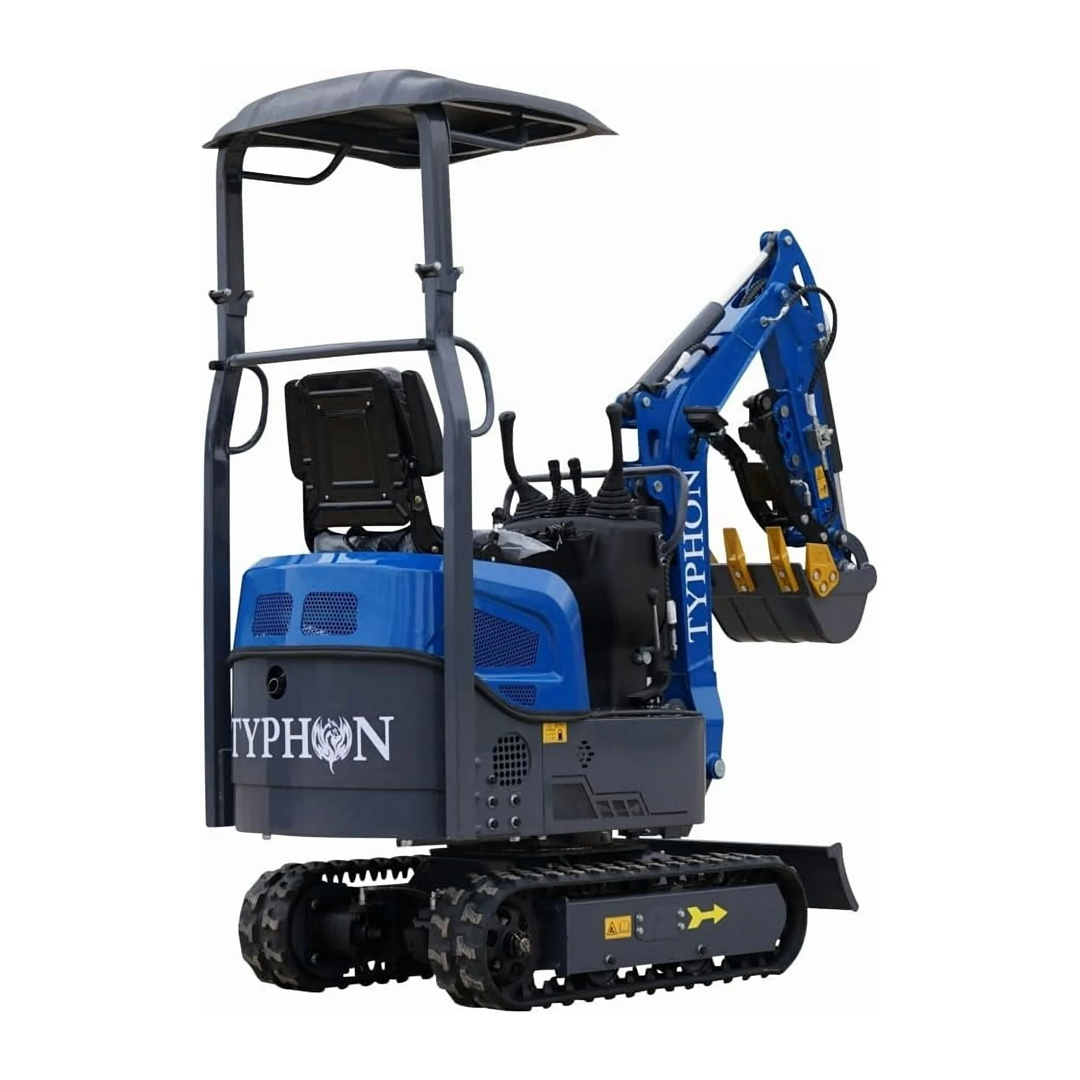

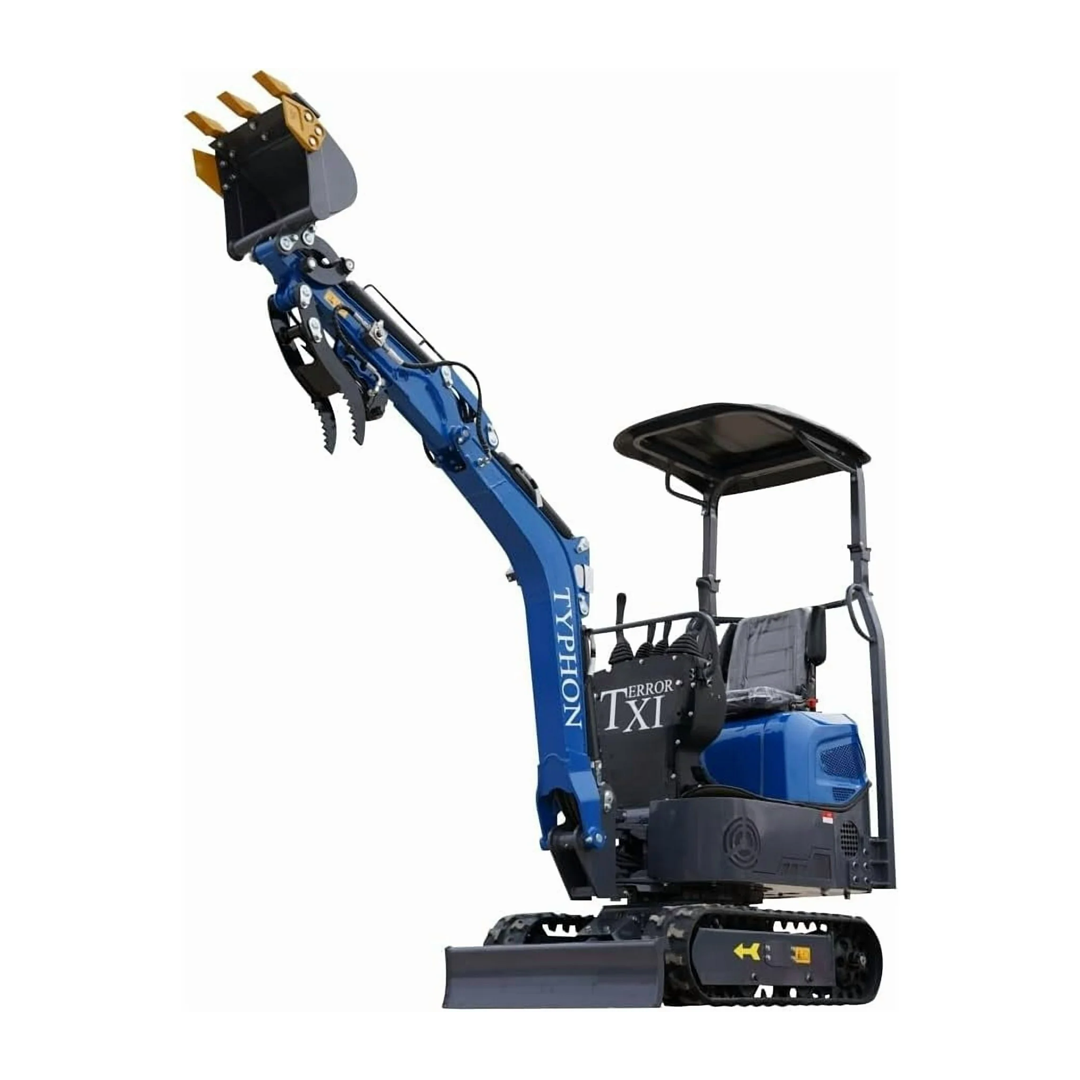

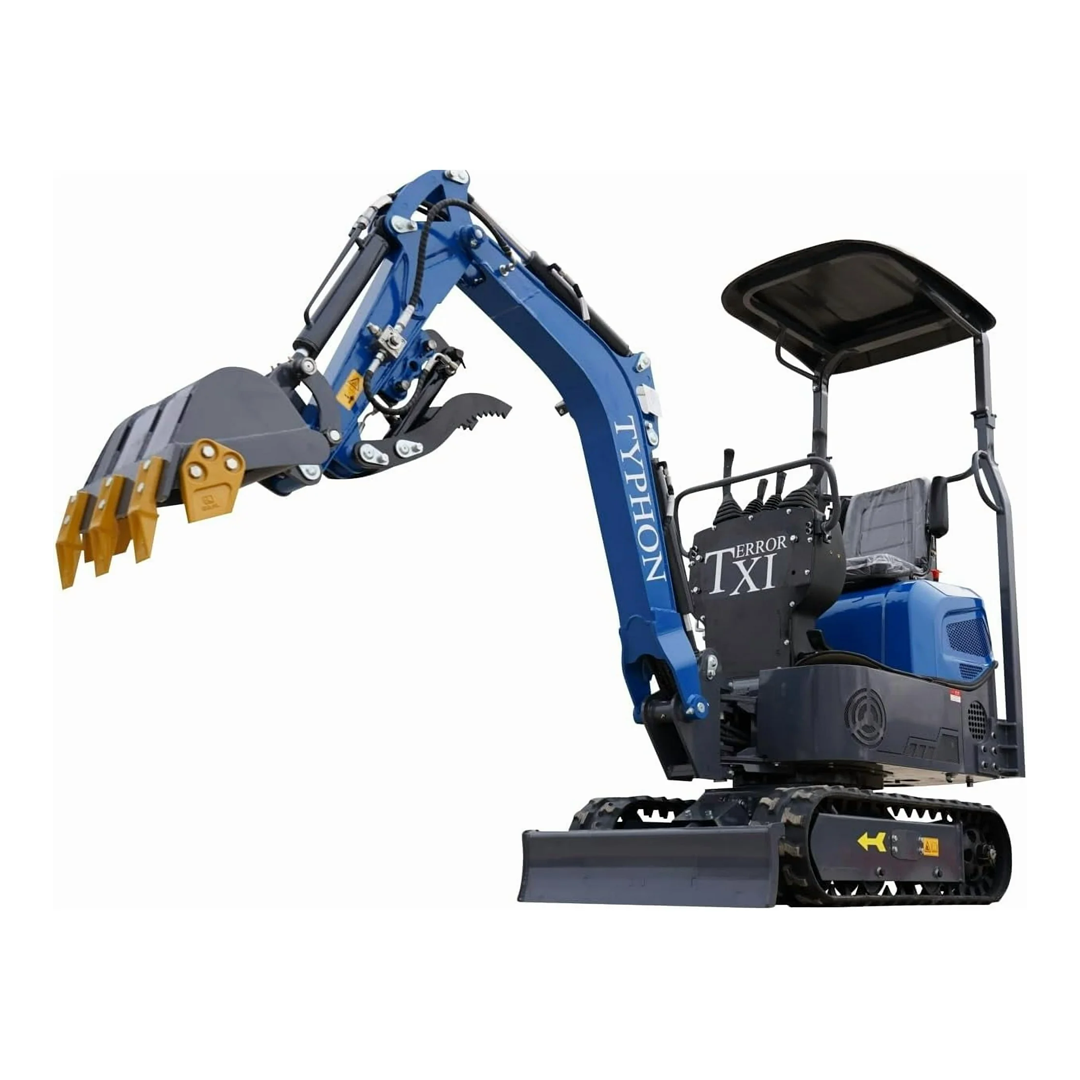

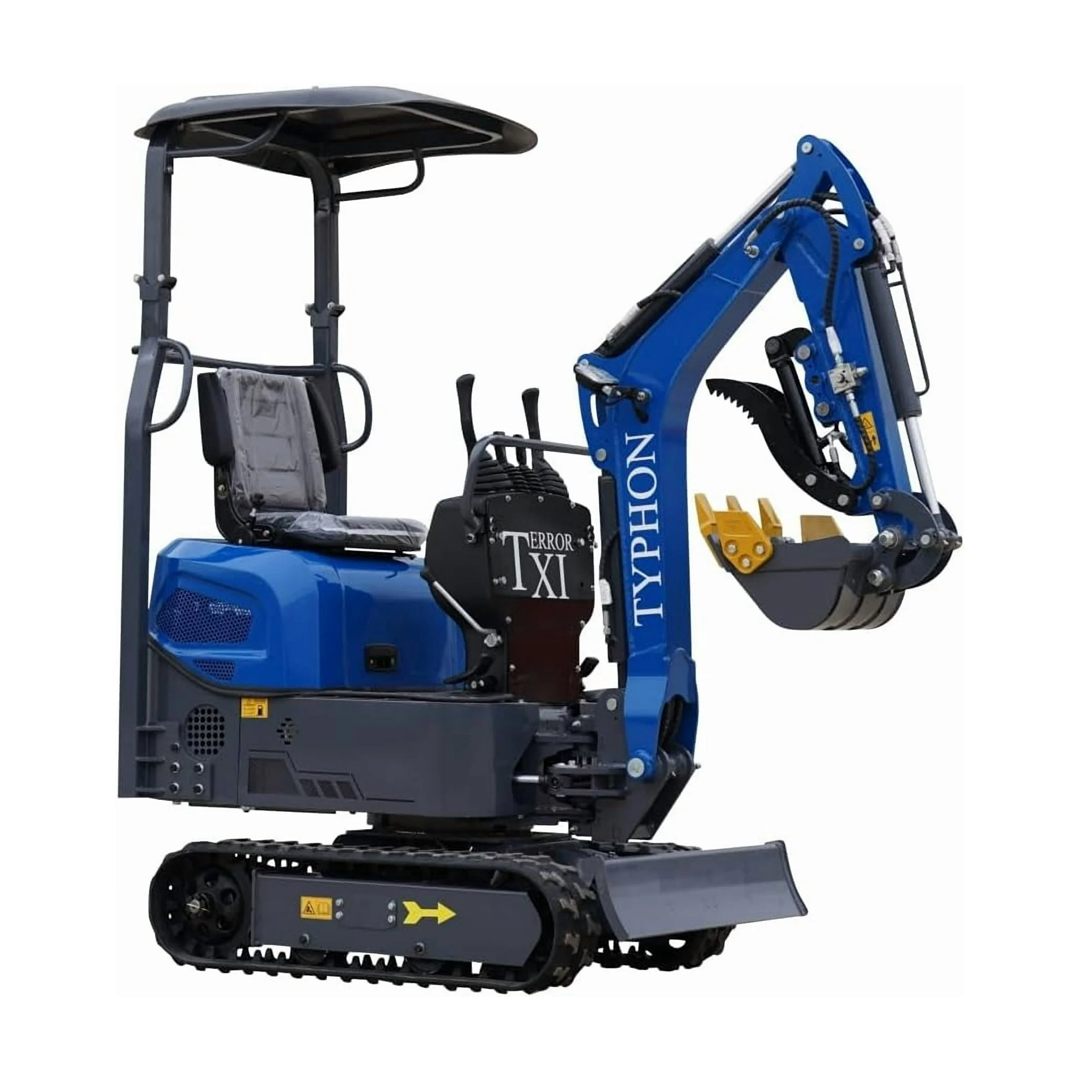

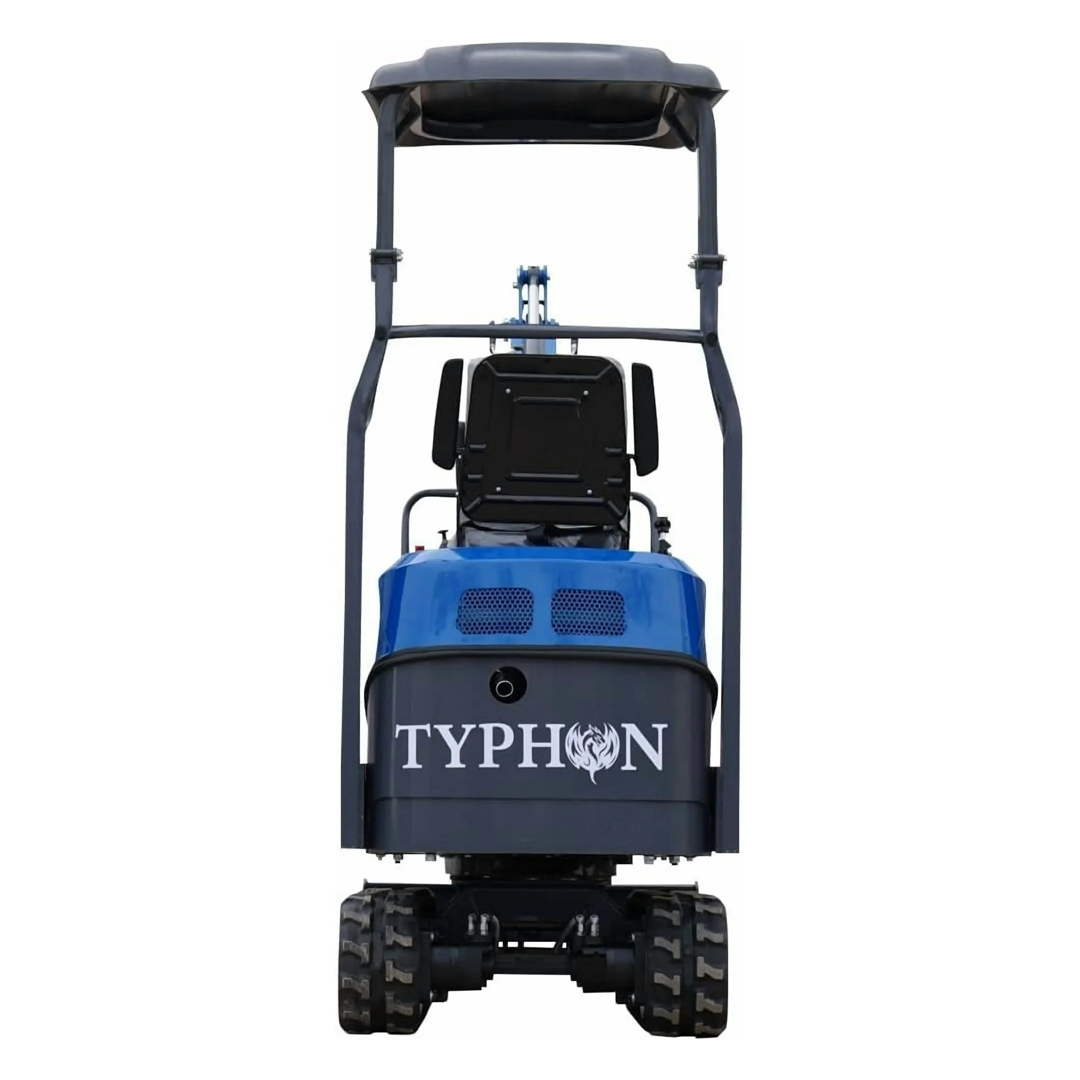

TERROR XI STORM Mini Excavator (1.1 Ton) — Briggs & Stratton EPA, 9.9 kW, 1626 mm Dig Depth, Boom Swing + Hydraulic Thumb Clip + Bucket

Overview

The TERROR XI STORM is designed for digging and trenching in tight spaces, combining a compact footprint with practical reach and boom swing flexibility.​
This model is listed with a Briggs & Stratton EPA engine and 9.9 kW rated power, paired with a 16 MPa working pressure hydraulic system for consistent digging performance.​
It includes the essentials for real jobsite work—boom swing, hydraulic thumb clip, and a digging bucket—so it can dig, grab, and handle material without constant manual repositioning.​

Best for

• Trenching, small foundations, irrigation/drainage runs, and tight-access excavation.​

• Debris handling and light cleanup using the hydraulic thumb clip.​

• Property maintenance projects where compact width (850 mm) helps access narrow spaces.​

Key specs (high intent)

• Brand: TYPHON.​

• Model code: TYPH-0121.​

• Engine: Briggs & Stratton EPA.​

• Rated power: 9.9 kW.​

• Work pressure: 16 MPa.​

• Walking speed: 2.2 km/h.​

• Rotation speed: 13 r/min.​

• Bucket capacity: 0.025 m³.​

• Fuel tank capacity: 10.2 L.​

• Gradeability: 30°.​

• Ground pressure: 20 kPa.​

• Digging force (arm): 4.6 kN.​

• Digging force (bucket): 7.2 kN.​

• Items included: Boom Swing, Hydraulic Thumb Clip, Bucket.​

Dimensions

• Total length: 2876 mm.​

• Overall width: 850 mm.​

• Overall height (seat): 1535 mm.​

• Total height (carport/canopy): 2200 mm.​

• Counterweight ground clearance: 385 mm.​

• Minimum ground clearance: 132 mm.​

• Tail turning radius: 800 mm.​

• Track ground length: 900 mm.​

• Track length: 1233 mm.​

• Gauge: 670 mm.​

• Track width: 840 mm.​

• Track shoe width: 180 mm.​

• Assembled product height: 87 in.​

Working scope (operating range)

• Maximum digging height: 2550 mm.​

• Maximum unloading height: 1687 mm.​

• Maximum vertical arm digging depth: 1626 mm.​

• Maximum digging distance: 3077 mm.​

• Maximum digging distance at ground level: 2992 mm.
